Dispensing Custom R&D Isolator
Isolator for research and development

Highlights

• Hinged front view panels with inflatable seals
• Handles with integrated safety switch
• Communication door, for communication with the adjoining chamber on installed on the back wall of the chamber
• Circular and oval glove flanges made of PP (Polypropylene) complete with gloves for materials handling
• Drainage sanitary tank bottom valve activated by footswitch and protected by cap with holes
• Working plane sloped to drain valve
• Led lights
• Predisposition connections for WFI, PW, compressed air, vacuum, nitrogen, power/data cables and other necessary utilities. Process Gases regulation available
• General draining piping to external tank
• Analog gauge for internal pressure’s visualization
• Integration of inliner
• Analog gauge for internal pressure’s visualization
• Fischer connectors for electrical connections

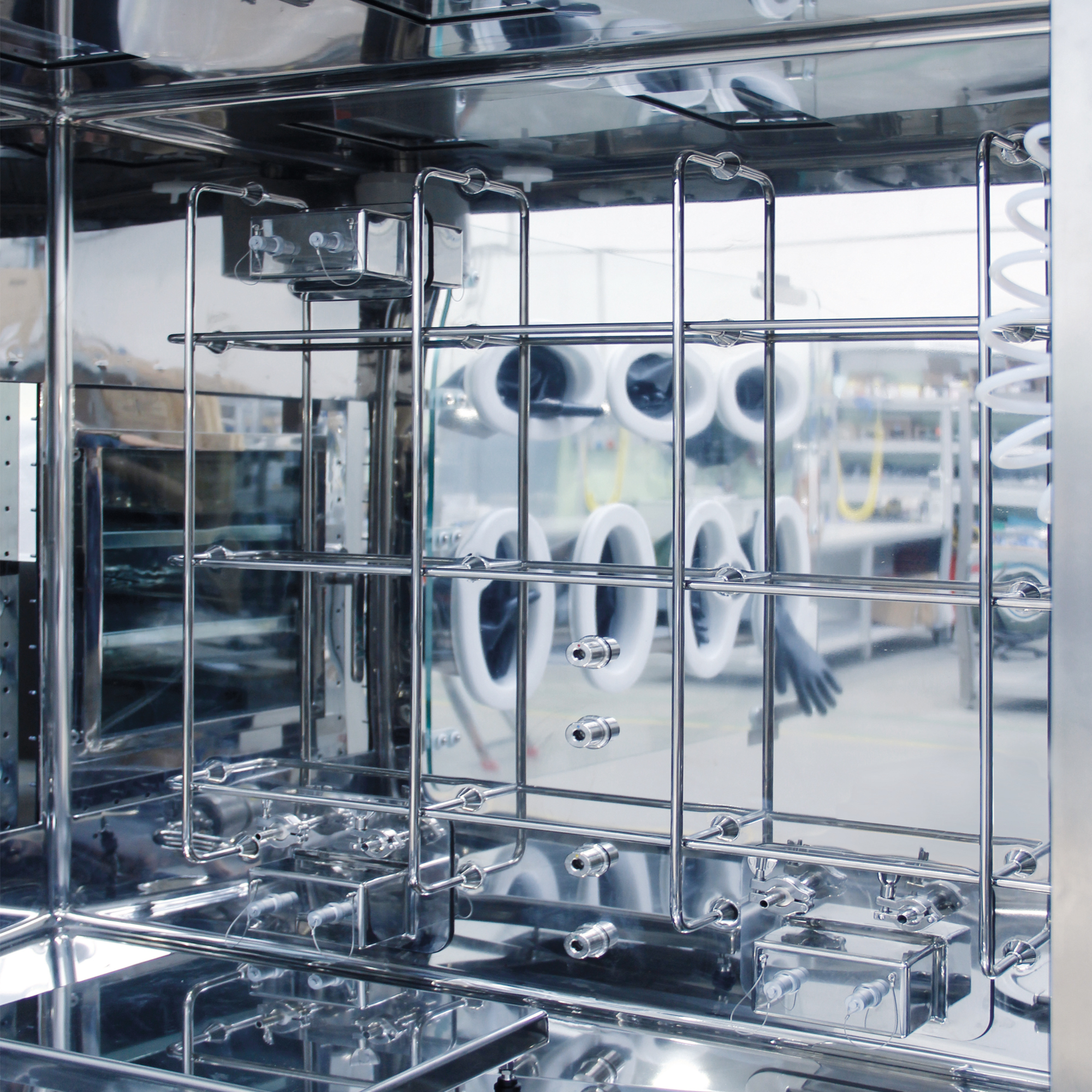

• Metallic reticulate for reactor organization
• Staubly connectors for Nitrogen inlet, IN thermoregulation, OUT thermoregulation, Vacuum inlet and CIP inlet
• Speedy Gloves for glove intergity testing
• Remote service connection
• Batch Reporting & SCADA

The Dispensing Custom R&D isolator has one system for washing & drying and one for drainage discharge.

The isolator comprises one or more chambers, as listed below:

• Pre-chamber – used for introducing and unloading the materials;
• Main chamber – used for operations of handling and weighing of the product.

Different kinds of equipment are integrated or available as option upon request, as:

• Washable scales, printer and panels
• Continuous Liner and DPTE
• WIP / CIP system
• H14 Bag-in Bag-out Inlet/Outlet Filters
• Aseptic pharma valve

The isolator is equipped with a fitting to allow integration with a drying oven.

Furthermore, in the main chamber there is a structure to support a reactor and plates for the customer’s instrumentation utilities.
